उत्पाद विवरण
Place of Origin: GuangDong
ब्रांड नाम: YUSH
Model Number: YS-250S
भुगतान और शिपिंग शर्तें
Minimum Order Quantity: 1
मूल्य: USD3500
Delivery Time: 20work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100
weight: |
200kg |
Air soure: |
0.4-0.6MPa |
Power supply: |
single-phase 220V50HZ |
External dimension: |
1130*1500*1660mm |
weight: |
200kg |
Air soure: |
0.4-0.6MPa |
Power supply: |
single-phase 220V50HZ |
External dimension: |
1130*1500*1660mm |

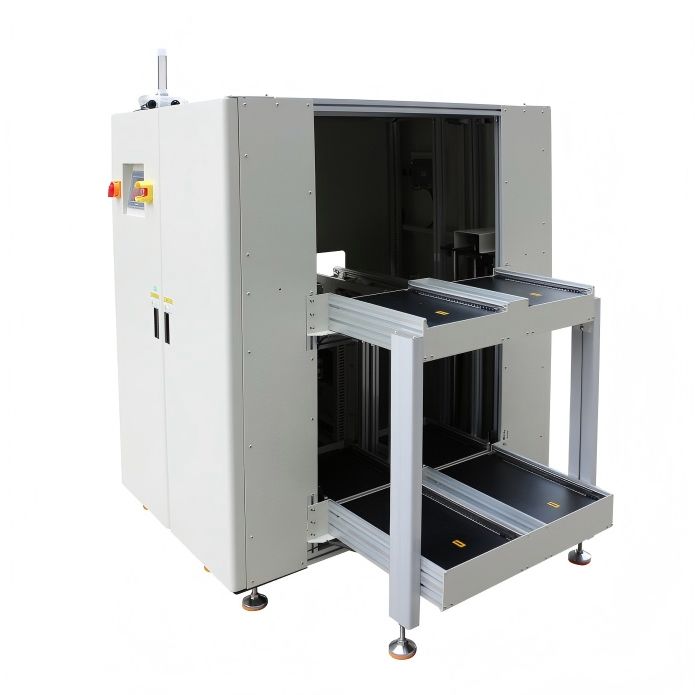

Smart Stacking Unloader For SMT Production Lines
Features:
1.Strong and stable mechanical design
2.PLC control system and the time of sheet feeding
3.Should less 5 seconds
4.LED TFT touch sereen eontrol Panel
5.Pass through function to send the PCB boards continuously
Technical parameter
| External dimension:1130*1500*1660mm |
| Special national standard frosted aluminum profile guide rail and special thousand-bird plastic chain |
| 90W Taiwan's special right-angle motor drives the ball screw to make the Magazine step up and down |
| The specification of Magazine is(W)320*(L)355*(H)570mm |
| PCB specification is L330*W250 |
| Lift platform pitch selection is 10.20.30.40.50 |
| Huichuan PLC programmable controller control |
| Power supply:single-phase 220V50HZ |
| Air source; 0.4 - 0. 6 MPa |
| One set of electric cabinet |
