उत्पाद विवरण
उत्पत्ति के प्लेस: गुआंग्डोंग
ब्रांड नाम: YUSH

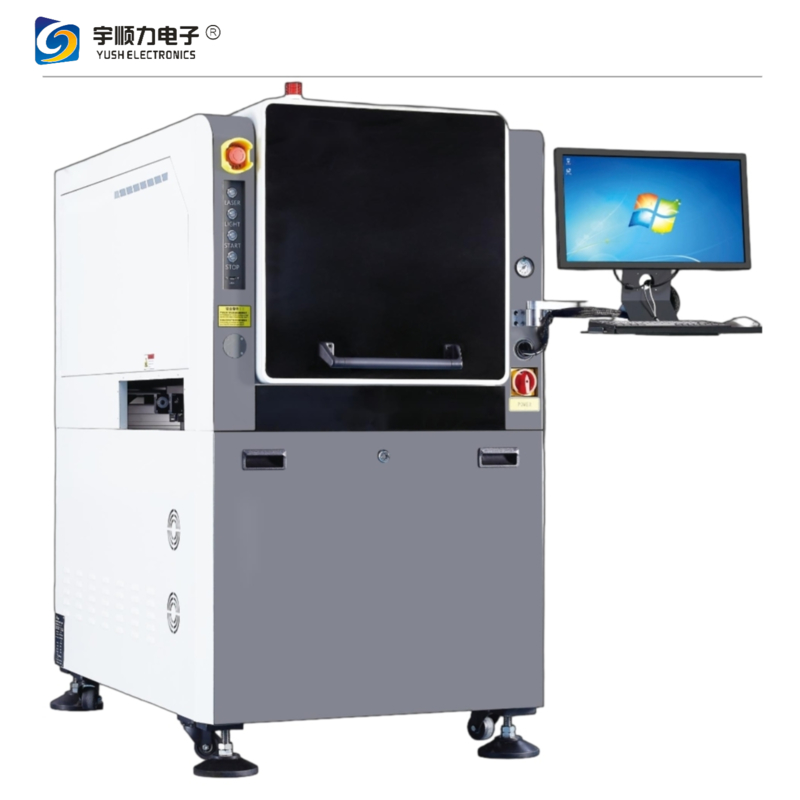

मॉडल संख्या: वाईएसएल-510
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 1
मूल्य: USD 30000
प्रसव के समय: 20 कार्य दिवस
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 1000
| Model | YSL-510(Single-head coaxial vision) |
|---|---|
| Wave Length | 355nm532nm1064nm10640nm |
| Service Power | UV (3w,5w) Green (7w,10w) Fiber (10w,20w,30w) Co2(10w,20w,30w) |
| Laser Marking Range | 50*50-510*460mm |
| PCB Size | 510*460mm |
| Marking Speed | The speed can reach 7000mm/s (for example, white ink processing size 3 * 3mm with a 55 digit QR code, completed within 1 second) |
| Marking Position Accuracy | ±0.05mm(Can be customized according to customer requirements) |
| Repeated Positioning Accuracy | ±0.02mm |
| Visual System | Coaxial hawk-eye visual correction function, for standard graphics acquisition, for FPC, soft and hard board and deformation of the position for accurate marking |
| PCB Thickness | 0.5-5mm (thicker specifications can be customized) |
| Electricity Demand | 220V/50Hz, total power ≈2500W |
| One-dimensional Code Type | Code 39,Code 25,Code 93, Code 128,EAN-13, EAN-8, ISBN and other |
| Type Of QR Code | Datamatrix,QR Code,micro QR Code,PDF417,Code49,Code 16k and other common QR code |
| Can Process QR Code Size | 1.5mmx1.5mm~20mmx20mm(The minimum size of the two-dimensional code can be processed depends on the content of the two-dimensional code) |
| Character Type | Support TrueType fonts, single-line fonts (JSF), SHX fonts, Dot matrix fonts(DMF) |
| Support File Format | DXF,PLT, Excel, TXT and other common file formats |
| Automatic Positioning Function | Support automatic photo, support 2, 3, 4 point positioning mode |
| Overall Dimensions And Weight | 920*1500*1500mm, Weight:750KG |
| Ambient Temperature | Ambient temperature:20-28℃,humidity:30%-60% |
| Barometric Pressure | Compressed air:0.4-0.6Mpa |
