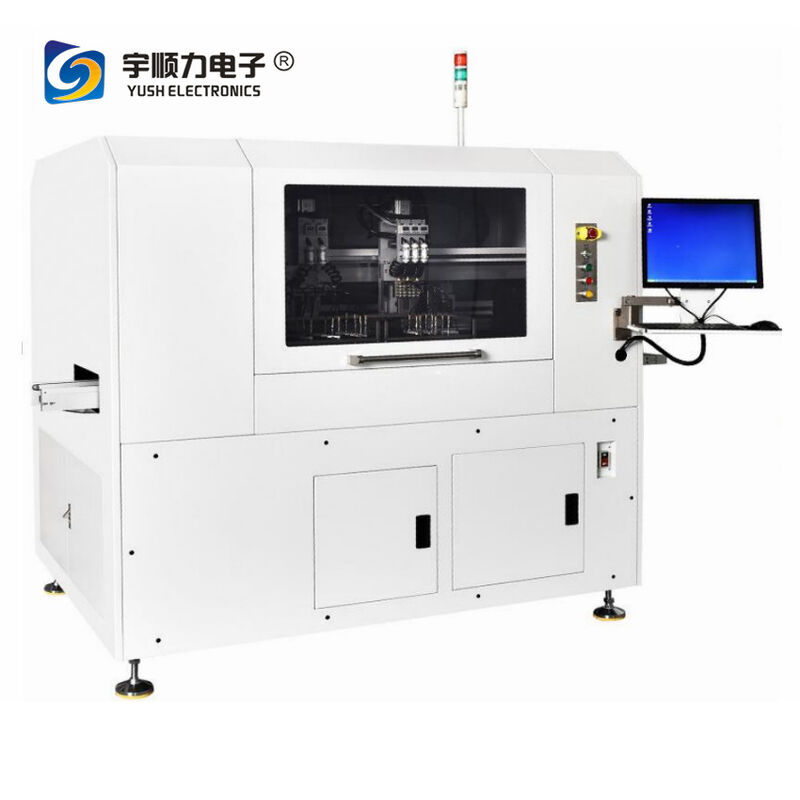

High-Precision On-Line Automatic Board Machine PCB Router

उत्पाद विवरण

उत्पत्ति के प्लेस: गुआंग्डोंग, चीन

ब्रांड नाम: YUSH

भुगतान और शिपिंग शर्तें

न्यूनतम आदेश मात्रा: 1 सेट

मूल्य: $50,000-100,000 / set

सबसे अच्छी कीमत पाएं

उत्पाद विवरण

उत्पाद का वर्णन

प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High-Precision PCB Router Machine, Automatic PCB Depaneling Machine, On-Line PCB Board Router


वज़न:	1000 किग्रा	शक्ति:	10 किलोवाट
वोल्टेज:	220V	काटने की सटीकता:	± 0.08 मिमी
repeatability:	±0.02मिमी	कार्य सीमा:	400mmX400mm
पीसीबी मोटाई:	0.3 मिमी -6 मिमी	स्पिंडल गति:	80000/मिनट
उपकरण का आकार:	1590x1330x1650 मिमी	बिंदु प्रकार चिह्नित करें:	चौराहे पर
वैक्यूम क्लीनर का आकार:	750x580x615मिमी	अधिकतम तनाव:	-240 ~ 130 माइक्रो एन/मिमी
कटर आकार:	0.8 मिमी-3.0 मिमी	गैस स्रोत:	4-6 किग्रा/सेमी²
धूल फ़िल्टरिंग सटीकता:	0.0001

वज़न:	1000 किग्रा
शक्ति:	10 किलोवाट
वोल्टेज:	220V
काटने की सटीकता:	± 0.08 मिमी
repeatability:	±0.02मिमी
कार्य सीमा:	400mmX400mm
पीसीबी मोटाई:	0.3 मिमी -6 मिमी
स्पिंडल गति:	80000/मिनट
उपकरण का आकार:	1590x1330x1650 मिमी
बिंदु प्रकार चिह्नित करें:	चौराहे पर
वैक्यूम क्लीनर का आकार:	750x580x615मिमी
अधिकतम तनाव:	-240 ~ 130 माइक्रो एन/मिमी
कटर आकार:	0.8 मिमी-3.0 मिमी
गैस स्रोत:	4-6 किग्रा/सेमी²
धूल फ़िल्टरिंग सटीकता:	0.0001

High-Precision On-Line Automatic Board Machine PCB Router

Advanced automatic depaneling machine designed for high-precision PCB separation with minimal stress, featuring automated board handling and cutting processes.

Product Introduction - YASTM-4C Automatic Depaneling

High-precision on-line automatic board depaneling machine with minimal stress operation for superior PCB separation quality.

Main Application Areas

Home appliance control, new energy industry, 5G WIFI modules, smart phones, smart wearables, precision instruments, tablet computers, smart homes, medical equipment, aerospace, military products, and more.

Equipment Appearance and Dimensions

PCB Cutting Stress Analysis

Maximum stress: -240 ~ 130 Micro N/mm

Suitable for multi-panel and high-precision PCB cutting applications.

Dust Contamination Risks

Conductive dust can cause short circuits
Non-conductive dust absorbs moisture over time, leading to intermittent circuit failure
Corrosive dust damages copper circuits

Machine Design Features

On-line automatic board depaneling with automated feeding, cutting, and output for improved efficiency
CCD camera alignment system for enhanced cutting accuracy and misoperation prevention
Imported high-speed spindle for reduced cutting stress, small inertia, and quick response
Double working platform in/out structure design for increased cutting efficiency
Aviation aluminum control shaft for lightweight strength and hardness
Automatic tool change function with broken tool detection for precision and stability
Standard MES/ERP connection port for real-time database connectivity
Optional barcode camera for automatic scanning and database information upload
Windows 7 operating system

YASTM-4C Technical Parameters

Parameter	Specification
Effective Cutting Size	Double working platform, maximum working range of single platform 400mm×400mm
Dust Collection Method	Anti-static, explosion-proof filter bags with foolproof device and automatic alarm system; filtering accuracy 0.0001
Cutting Spindle	German Sycotec (ESD) speed: 80,000 rpm adjustable (air cooling)
Tool Change Method	Automatic milling cutter replacement with life monitoring
Broken Tool Detection	Equipped with broken tool detection system
Workbench Mode	Panasonic servo motor + precision ground screw + precision slide
Servo Motor Brand	Japan Matsushita
Computer System	Taiwanese industrial computer with Windows 7 genuine system
Static Eliminator	Schneider France
Information Management	MES system support with Ethernet interface and TCP/IP protocol
CCD Camera Structure	Flying camera structure with height differentiation capability
MARK Point Recognition	Full type recognition and correction standard
LED Aperture Control	Software-adjustable color difference and brightness
Operator Authority	Four-level password protection
Expansion Function	Reserved ports for future robot or automation integration

Cutting Parameters

Parameter	Specification
Cutting Accuracy	±0.08mm
Repeatability	±0.02mm
Maximum Working Range	400mm × 400mm
PCB Cutting Thickness	0.3mm - 6mm
Applicable Cutter Size	0.8mm - 3.0mm
Mark Point Types	Round, Square
Cutting Functions	Straight line, sector shape, circle shape, universal copy, automatic correction and compensation

Control Parameters

Parameter	Specification
XYZ Control Method	CNC Dedicated Controller
XYZ Drive Mode	Panasonic AC Servo
Maximum Spindle Speed	80,000 rpm
Vacuum Method	Suck up
Router Type	Suction up (right-handed)
PCB Support Method	Universal top PIN, special fixture
Equipment Power	AC 220V
Vacuum Cleaner Power	AC 380V
Gas Source	4-6kg/cm²
Equipment Size (L×W×H)	1590×1330×1650mm
Vacuum Cleaner Size (L×W×H)	750×580×615mm
Total Weight	1000 KG
