प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                desktop PCB router milling machine, PCB depaneling machine with warranty, compact desktop PCB milling machine


वज़न:	135 किग्रा	शक्ति:	10 किलोवाट
वोल्टेज:	220V/380V	नमूना:	YS-L530
आयाम:	L623W737H587मिमी	मशीन की शक्ति:	3.6KW
क्लीनर वाट क्षमता:	2.2KW/220V	तालिका आयाम:	260मिमी*260मिमी
काटने की गति:	0-100मिमी/सेकेंड	शरीर की सामग्री:	±0.01मिमी
कार्य क्षेत्र:	X:0-260mm, Y:0-260mm, Z:0-80mm	पीसीबी मोटाई:	0.5-5मिमी
राउटर बिट व्यास:	0.8-3.0 मिमी	स्पिंडल गति:	60000RPM
हवाई प्रेस:	0.4MPA

वज़न:	135 किग्रा
शक्ति:	10 किलोवाट
वोल्टेज:	220V/380V
नमूना:	YS-L530
आयाम:	L623W737H587मिमी
मशीन की शक्ति:	3.6KW
क्लीनर वाट क्षमता:	2.2KW/220V
तालिका आयाम:	260मिमी*260मिमी
काटने की गति:	0-100मिमी/सेकेंड
शरीर की सामग्री:	±0.01मिमी
कार्य क्षेत्र:	X:0-260mm, Y:0-260mm, Z:0-80mm
पीसीबी मोटाई:	0.5-5मिमी
राउटर बिट व्यास:	0.8-3.0 मिमी
स्पिंडल गति:	60000RPM
हवाई प्रेस:	0.4MPA

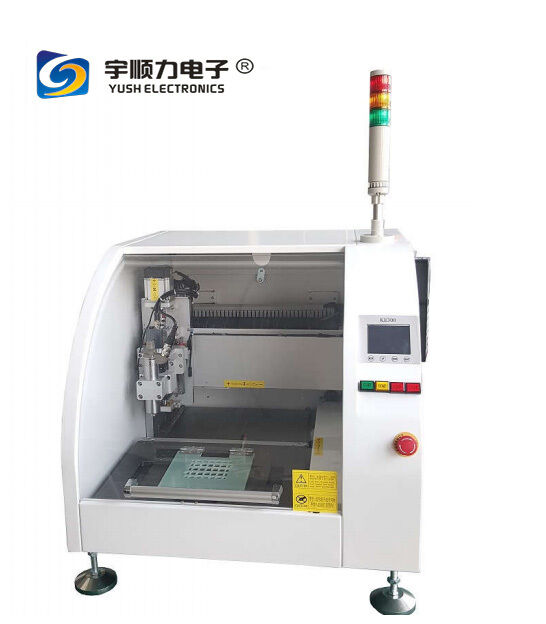

Desktop PCB Router Milling Machine

Key Features

Bottom dust collection system utilizing free fall theory for optimal dust removal
Specialized fixtures ensure secure positioning to maintain cutting accuracy
Automatic system correction based on product installation position for high-precision cutting
Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
Safety door design reduces noise, contains dust, and enhances operational safety
Integrated dust collection box with maintenance scheduling based on cutting requirements

Applications

Ideal for separating stamp hole PCB boards and irregular joint PCB boards

Technical Specifications

Function Items	Hardware Demand
Model	YS-L530
Dimension	L623W737H587mm
Power	220V/50HZ
Machine Power	3.6KW
Weight	About 300KG
Cleaner Dimension	Inside / L650W500H550mm
Cleaner Wattage	2.2KW/220V
Table Dimension	260mm*260mm
Cutting Speed	0-100mm/s
X,Y,Z Axis Driving Speed	X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy	±0.01mm
Working Area	X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness	0.5-5mm
Router Bit Diameter	0.8-3.0mm
Cutting Precision	±0.01mm
Cutting Ability	Linear, Circular, U-curve, Arc, L-curve
Cutter Change	Manual, tools needed
Spindle Speed	60000rpm
Spindle Cooling System	Air cooling mode
Safety Device	Safety door and door lock sensor
Voice Control	≤78 dB (measured in 1M distance)
