प्रमुखता देना:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Large SMT PCB cleaning machine, PCB stencil resin cleaner, Hot air drying PCB depaneling machine


वज़न:	500 किलोग्राम	शक्ति:	10 किलोवाट
वोल्टेज:	220V/380V	अधिकतम स्टेंसिल आकार:	L800 x W750 x H40(मिमी)
धोने का समय:	2~5मिनट	शुष्क मोड:	गर्म हवा शुष्क
बिजली की आपूर्ति:	AC380V,50/60HZ,33KW	रासायनिक टैंक:	50x2पीसी
राल समय:	2~5मिनट	शुष्क समय:	3 ~ 5 मि
तरल गर्मी अस्थायी:	0 ~ 60 ℃	शुष्क अस्थायी:	0~90℃
ताप शक्ति धो लें:	9 किलोवाट	राल ताप शक्ति:	9 किलोवाट
हॉट एयर पावर:	6KW

वज़न:	500 किलोग्राम
शक्ति:	10 किलोवाट
वोल्टेज:	220V/380V
अधिकतम स्टेंसिल आकार:	L800 x W750 x H40(मिमी)
धोने का समय:	2~5मिनट
शुष्क मोड:	गर्म हवा शुष्क
बिजली की आपूर्ति:	AC380V,50/60HZ,33KW
रासायनिक टैंक:	50x2पीसी
राल समय:	2~5मिनट
शुष्क समय:	3 ~ 5 मि
तरल गर्मी अस्थायी:	0 ~ 60 ℃
शुष्क अस्थायी:	0~90℃
ताप शक्ति धो लें:	9 किलोवाट
राल ताप शक्ति:	9 किलोवाट
हॉट एयर पावर:	6KW

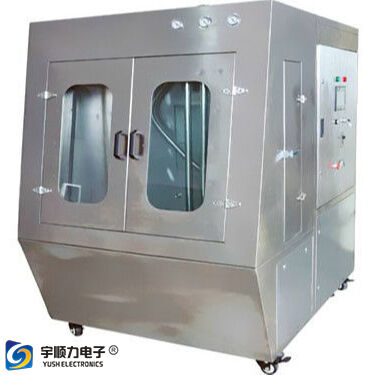

Large Size SMT PCB / Stencil Resin Cleaning Machine , Hot Air Drying

Large Size SMT PCB / Stencil Resin Cleaning Machine with Hot Air Drying

Recommended Stencil Cleaning Machine AC380V - Wash, Resin and Dry 3-in-1 System

Pneumatic stencil cleaner designed for industrial applications
High-quality electrical pump with high-pressure wash, resin, and dry processes
Total SUS 304 stainless steel structure resistant to acid and alkali corrosion
Durable construction with over 10-year lifespan
One-key automated operation with preset cleaning procedures
Versatile cleaning capability for SMT stencils, silk screens, print jigs, squeegees, large PCBA, and misprint PCBs
Completely closed spray developing process for clean workshop environment
Premium electrical and pneumatic components from Germany, USA, and Japan
Modular design for easy maintenance and service
Touch panel interface for quick parameter setting including chemical temperature, wash time, resin time/temperature, and dry time/temperature

Technical Specifications

Maximum Stencil Size	L800 x W750 x H40 (mm)
Chemical Tank Capacity	50L x 2 units
Wash Time	2~5 minutes
Resin Time	2~5 minutes
Dry Time	3~5 minutes
Resin Cycle	1~99 cycles
Cleaning Chemical	Water-based chemicals
Resin DI Water	Open loop DI water or closed loop chemical spray
Drying Mode	Hot air drying
Liquid Heating Temperature	0~60℃
Drying Temperature	0~90℃
Wash Heating Power	9KW
Resin Heating Power	9KW
Hot Air Power	6KW
Clean/Resin Filter	0.45μm
Resistivity Range	0~18MΩ
Power Supply	AC380V, 50/60Hz, 33KW
Machine Dimensions	1580 x 1180 x 1860mm (L x W x H)
