उत्पाद विवरण
उत्पत्ति के प्लेस: चीन, गुआंग्डोंग
ब्रांड नाम: YUSH
प्रमाणन: CE
भुगतान और शिपिंग शर्तें
न्यूनतम आदेश मात्रा: 1
मूल्य: USD 18800
पैकेजिंग विवरण: लकड़ी का केस
प्रसव के समय: 1
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 10

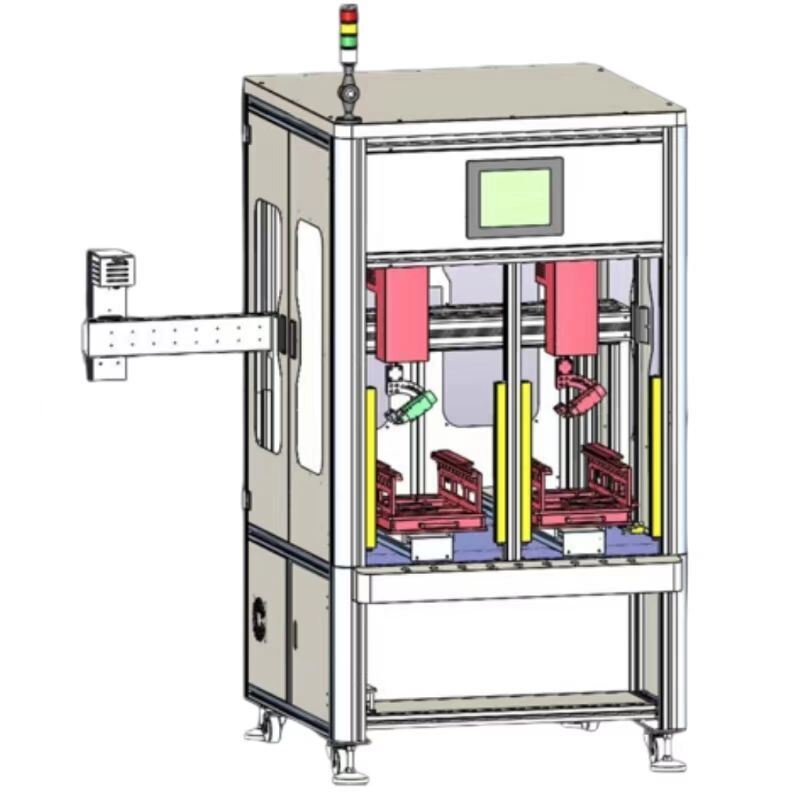

Advanced component lead trimming solution for precision PCB manufacturing with automated operation and high-speed performance.
| Parameter | Specification |
|---|---|
| Valid Travel Range | X1/200/X2/200/Y1/300/Y2/300/Z1/100/R/360° (customizable) |
| Speed | 100 points/minute |
| Repeat Accuracy | 0.02-0.04mm (synchronous belt rotation) |
| Workload Capacity | X,Y load (10kg) Z load (5kg) |
| Dimensions | 730mm × 900mm × 890mm |
| Weight | 68kg |
| Frame Construction | Aviation aluminum alloy structure with brushed electrophoresis surface treatment |
| Drive System | Stepper motor + linear guide + timing belt |
| Motor Type | Stepper precision motor |
| Axis Speed (X/Y/Z) | 0-600mm/sec |
| Power Supply | Full voltage AC110V-220V |
| Motor Control Axes | 5-axis |
| Resolution | 0.01mm/Axis |
| Programming Method | Teach programming or drag programming |
| Motion Control System | Five-axis motion control card, stable and efficient |
| Cutting Capacity | Copper 1.5mm, Iron 1.0mm, Steel 0.5mm (customizable) |
| Program Capacity | Point files ≤ 99, Points ≤ 999 |
| Motion Tweening | 3-axis |
| I/O Output | 8 in 16 out |
| Storage Expansion | Supports flash memory |
Suitable for all types of consumer electronics PCBs and electronic component manufacturing.
